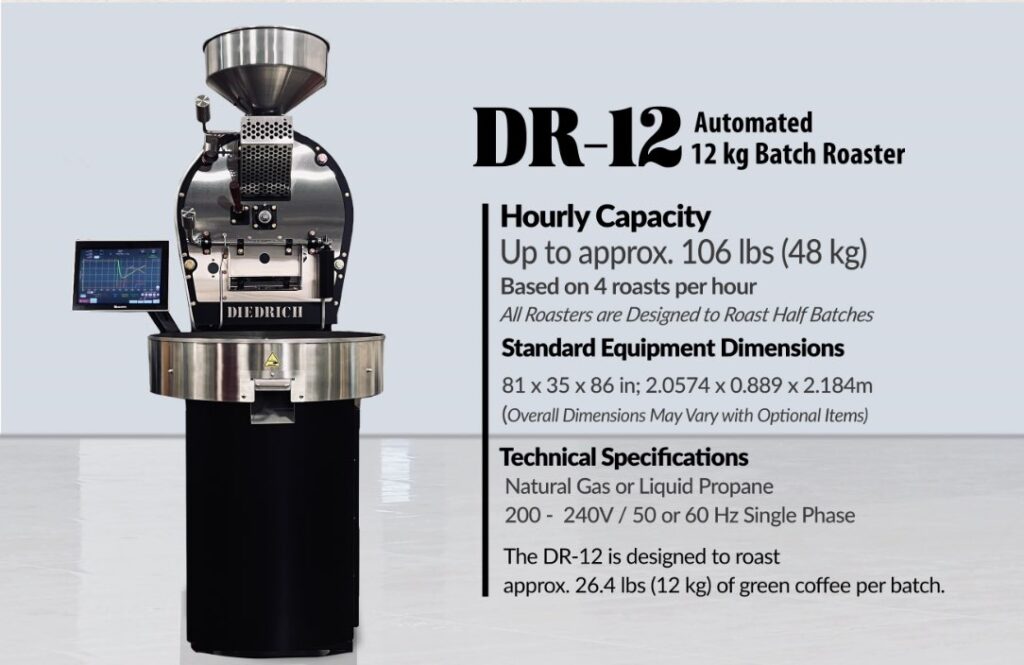

Batch size for the DR-12 is approximately 12.0 kg/26.0 lbs of green coffee.
Hourly capacity is approximately 48 kg/106 lbs per hour of green beans. In addition to full batch capacity, our roasters are also designed to roast half batches.
The Diedrich Roaster is designed for consistency and repeatability, ensuring a perfect roast batch after batch. In addition to full batch capacity, our roasters are also designed to roast half batches.
- Variable speed on roast air, cooling air, and drum.
- External chaff cyclone.
- Improved insulation package for more heat being transferred to the product and not the room.
- Split housing for blower motors for ease of cleaning and maintenance.
- Staged burner for lower minimum heat input.
- Updated automated controls system.
- Semi-auto or automated versions available with touch screen display included.
- Connect tablet or computer directly to your roaster.
- The burner system integrates directly with Cropster and Artisan for precise roast profile.
- Manual, data logging, or fully automated roasters available.
- Collect and save data.
- One-year warranty and 90-day electrical warranty.
Technical Information:
- Dimensions, Maximum: 81 x 35 x 86 in; 2.0574 x 0.889 x 2.184,
- Volts AC (1-Phase): 200-240VAC 1 phase
| Roaster |
Capacity |
| DR-12 |
92 lbs / hr |
Diedrich Roasters 2nd generation roast profile automation continues to advance coffee roasting. Designed for both Specialty and Commercial series, the updated Z 2.5 automation uses industrial-grade hardware, has user-friendly interface and offers operators the ability to precisely fine-tune and control the roast.
Diedrich guarantees the quality of the equipment and service for a period of twelve (12) months, but no later than eighteen (18) months after delivery or completion of services to the site has taken place.
Wear and tear items excluded. Diedrich will be responsible for any defects or faults that may develop or appear, arising from faulty materials, designs, programming or workmanship not in accordance with the drawings and/or code specification/function descriptions.
