Batch size for the DR-280 is approximately 616 lb (280 kg) of green coffee. In addition to full batch capacity, our roasters are also designed to roast half batches.
- Roast with control, quality, and consistency.
- Unique heat exchangers combined with infrared gas burners allow you to roast with conductive, convective, and radiant heat with total control.
- Simplified Controls: 2nd generation roast profile automation continues to advance coffee roasting.
- Designed for both IR series and CR series, the updated Z 2.5 automation uses industrial-grade hardware, has user-friendly interface and offers operators the ability to precisely fine-tune and control the roast during your roasts with our multi-sensor monitoring feature.
- Drums are built for true maximum batch size roasting with variable speed control.
- Drum drive, roaster blower, cooling stirrer arms, and destoner blower are available with variable speed drive.
- Monitor and save roasting parameters with our roaster batch control system.
- Our roaster controls allow the operator to design, save, and download roast profile parameters.
Technical Information:

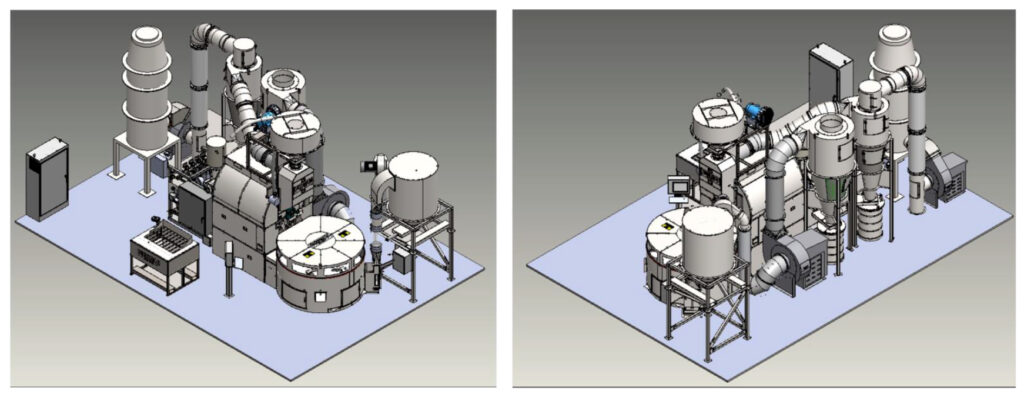

- Dimensions, Maximum: 19’10”x 12’6” x 13’5”;6045 x 3810 x 4089 mm
- Volts AC (3-Phase): 380-480V 3PH
Call our Chicago Sales Office
M-F 8:30am -5:00 pm Central Time
+888 444 0630
| Roaster |
Capacity |
| DR-280 |
2156 lbs / hr |
Diedrich Roasters 2nd generation roast profile automation continues to advance coffee roasting. Designed for both Specialty and Commercial series, the updated Z 2.5 automation uses industrial-grade hardware, has user-friendly interface and offers operators the ability to precisely fine-tune and control the roast.
Diedrich guarantees the quality of the equipment and service for a period of twelve (12) months, but no later than eighteen (18) months after delivery or completion of services to the site has taken place.
Wear and tear items excluded. Diedrich will be responsible for any defects or faults that may develop or appear, arising from faulty materials, designs, programming or workmanship not in accordance with the drawings and/or code specification/function descriptions.
